add preceding and trailing spaces to specified symbols

setup

to meet the formatting requirements of a journal, i need to make sure certain math symbols (=, >, ≥, <, ≤) are preceded and followed by a space. e.g. 2 > 1 instead of 2>1. i'd like to get that done by one click of a button.

solution

the plan

  1. write a macro for MS Word.
  • search & locate, say, "≥".
  • if there's a preceding space, move the selection start to immediately after the nearest non-space character.
  • if there's a trailing space, move the selection end to immediately before the nearest non-space character.
  • replace the text of the selected part with " ≥ ".
  • iterate over the symbols to be re-formatted.
  1. assign a macro to a button to the Word toolbar. see how in here: https://support.microsoft.com/en-us/office/assign-a-macro-to-a-button-728c83ec-61d0-40bd-b6ba-927f84eb5d2c

programming language & module(s)

  • VBA

file preps

make the doc to be processed the active document, i.e. the one where the cursor currently is in.

variables to customize

  • symbols. no separator's needed since the symbols are just single characters, e.g. "=>≥<≤±×".

the script

addSpacesBeforeAfter
Sub addSpacesBeforeAfter()

    Dim doc As Document

    Dim trkRevStatus As Boolean

    Dim selStart, selEnd, safeCount As Long

    Dim lan As String

    Dim ret, matches As Object



    Application.ScreenUpdating = False

    System.Cursor = wdCursorWait

    Set doc = ActiveDocument

    trkRevStatus = doc.TrackRevisions

    doc.TrackRevisions = False

    selStart = Selection.Start

    selEnd = Selection.End

    clearFind



    symbols = "=>≥<≤±×"



    Set ret = CreateObject("VBScript.RegExp")

    With ret

        .pattern = "."

        .Global = True

    End With

    Set matches = ret.Execute(symbols)

    With Selection

        For i = 0 To matches.Count - 1

            .HomeKey wdStory

            symbol = matches(i)

            With .Find

                .Text = symbol

                .Wrap = wdFindStop

            End With

            Do While .Find.Execute And safeCount < 10000

                safeCount = safeCount + 1

                If doc.Range(.Start - 1, .Start).Text = " " Then

                    .MoveStartWhile " ", wdBackward

                End If

                startIdx = .Start

                If doc.Range(.End, .End + 1).Text = " " Then

                    .Collapse wdCollapseEnd

                    .MoveRight unit:=wdWord, Count:=1, Extend:=wdExtend

                End If

                endIdx = .End

                doc.Range(startIdx, endIdx).Select

                .Text = " " & symbol & " "

                .Collapse wdCollapseEnd

            Loop

        Next i

        .HomeKey wdStory

        With .Find

            .Text = "( "

            .Replacement.Text = "("

            .Execute Replace:=wdReplaceAll

            .Text = " )"

            .Replacement.Text = ")"

            .Execute Replace:=wdReplaceAll

        End With

    End With



    clearFind

    doc.Range(selStart, selEnd).Select

    doc.TrackRevisions = trkRevStatus

    System.Cursor = wdCursorNormal

    Application.ScreenUpdating = True

End Sub



Sub clearFind()

    With Selection.Find

        .Text = ""

        .Replacement.Text = ""

        .Forward = True

        .Wrap = wdFindContinue

        .Format = False

        .MatchCase = False

        .MatchWholeWord = False

        .MatchByte = True

        .MatchWildcards = False

        .MatchSoundsLike = False

        .MatchAllWordForms = False

    End With

End Sub

output

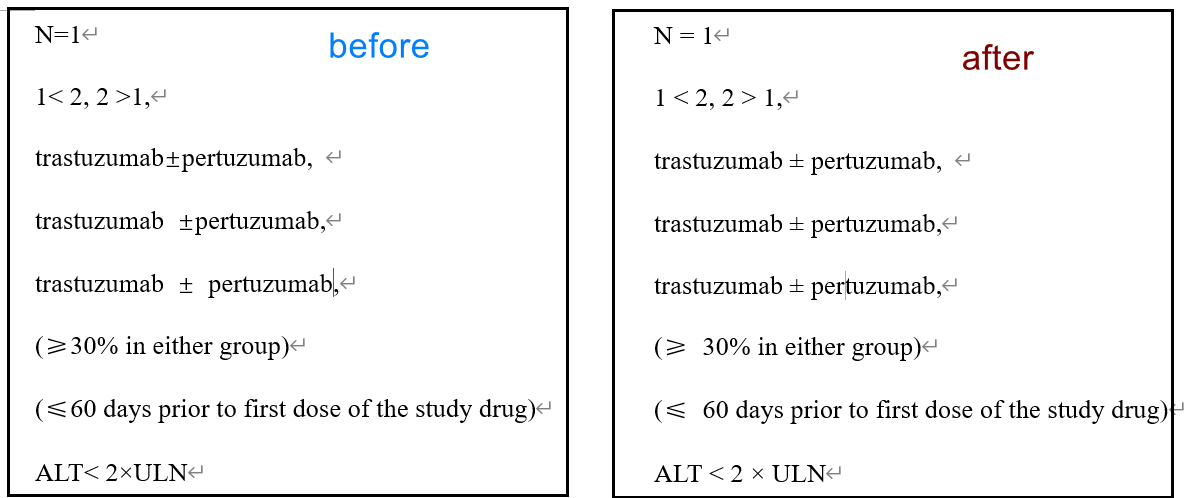

the doc will resume the desired format on the specified symbols, e.g. image.png

note to self

  • use the wdBackward argument when using .MoveStartWhile, or the start will go forward.
