Dec 08, 2024

format affiliation numbers poster-style

setup

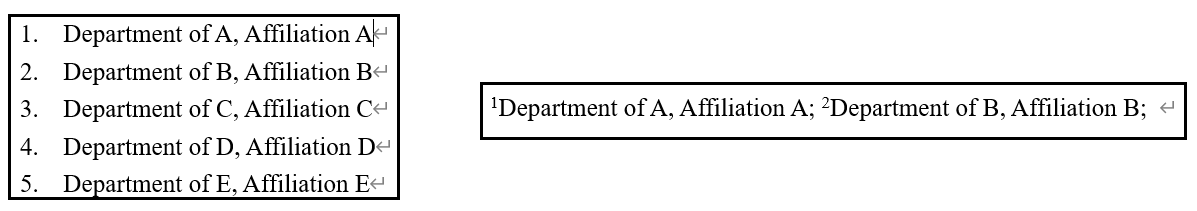

i have 30-odd author affiliations that look like the left panel and want to re-format to what's shown in the right panel. and i'm too lazy to do that manually ...

solution

the plan

copy the selected texts. read texts from the clipboard.
using regular expression (regex), replace '[affiliation number]. ' with '[affiliation number]'.
write the resulting string in a new document.
in the new doc, format the affiliation numbers.
copy all contents of the new document.

programming language & module(s)

file preps

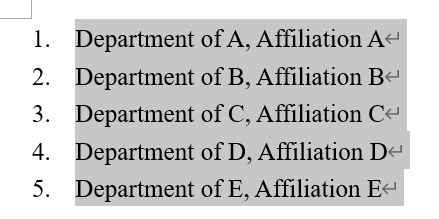

select the texts to turn affiliation numbers to superscripts, like this:

variables to customize

none.

the script

fmtAffilNoPoster

 Sub fmtAffilNoPoster()
    Dim ret, clipboard As Object
    Dim cbTxt As String
    Dim newDoc As Document
    Dim retPattern As String
    Dim newDocEnd As Long

    retPattern = "(\d+)\.?\s+(\w+)"

    clearFind
    Selection.Copy
    Set DataObj = New MSForms.DataObject
    DataObj.GetFromClipboard
    txt = DataObj.GetText(1)
'    Debug.Print txt
    splitted = Split(txt, Chr(13))
    Set ret = CreateObject("VBScript.RegExp")
    ret.pattern = retPattern
    ret.ignorecase = True ' if needed
    cbTxt = ""
    For i = LBound(splitted) To UBound(splitted)
        txt = splitted(i)
        If ret.test(txt) Then
            ' replaces "1. Affiliation A" with "1Affiliation A".
            ' "$1" stands for submatches(0).
            replacedTxt = ret.Replace(txt, "$1$2")
            replacedTxt = Replace(replacedTxt, Chr(13), "")
            replacedTxt = Trim(replacedTxt)
            If Len(cbTxt) = 0 Then
                cbTxt = replacedTxt
            Else
                cbTxt = cbTxt & Chr(13) & replacedTxt
            End If
        End If
    Next
'    Debug.Print "cbTxt: ", cbTxt

    Set newDoc = Documents.Add
    Selection.TypeText cbTxt
    For Each p In newDoc.Paragraphs
        Set rng = newDoc.Range(p.Range.Start, p.Range.Start + 1)
        rng.MoveEndWhile "0123456789"
        rng.Font.superScript = True
    Next
    With newDoc.Range.Find
        ' collapse all paragraphs into 1.
        .Text = "^p"
        .Replacement.Text = "; "
        .Execute Replace:=wdReplaceAll
        With Selection
            .EndKey wdStory
            ' delete the last "; "
            With .Find
                .Text = "; "
                .Replacement.Text = ""
                .Forward = False
                .Execute Replace:=wdReplaceOne
            End With
            .EndKey wdStory
            .MoveStartWhile Chr(13)
            newDoc.Range(0, .Start).Copy
        End With
    End With
    newDoc.Close savechanges:=wdDoNotSaveChanges
    clearFind
End Sub

Sub clearFind()
    With Selection.Find
        .Text = ""
        .Replacement.Text = ""
        .Forward = True
        .Wrap = wdFindContinue
        .Format = False
        .MatchCase = False
        .MatchWholeWord = False
        .MatchByte = True
        .MatchWildcards = False
        .MatchSoundsLike = False
        .MatchAllWordForms = False
    End With
End Sub

output

the result is now in the clipboard, ready to be pasted.

note to self

a good tutorial (in Chinese) of working with regex in VBA: https://geek-docs.com/regexp/regexp-tutorials/51_vba_regular_expression.html
